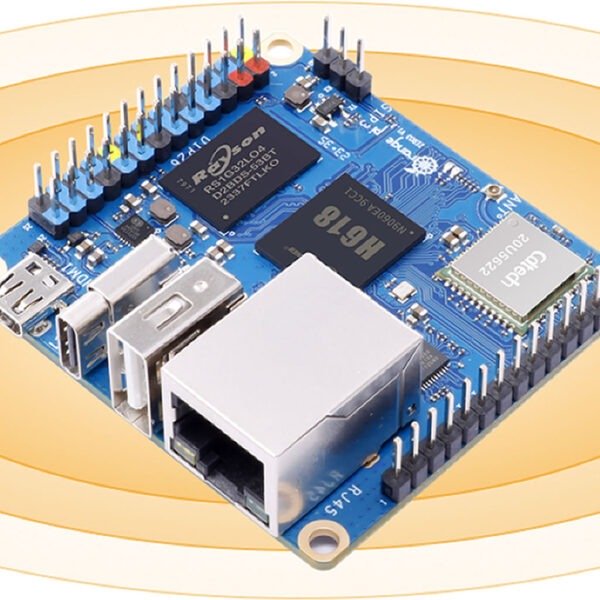

Orange Pi Zero 3 1GB RAM

Description

Orange Pi Zero 3 is powered by Allwinner H618 quad-core Cortex-A53 processor, Arm Mali-G31 MP2 GPU, supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1, etc., with 1GB memory options, decoding of multiple video formats is supported, and the Micro-HDMI output supports 4K display.

In addition, Orange Pi Zero 3 can also be extended with headphones, TVout, USB2.0, IR reception and other functions via 13Pin expansion ports with an adapter board, in addition to the 26Pin expansion function port on the board, further enriching the functional interface of the motherboard.

Orange Pi Zero 3 provides stable, detailed and smooth ultra-clear picture quality experience, which can be widely used in TV boxes, smart screen casting devices.

Specification:
Model: Orange Pi Zero 3
SOC: Allwinner H618 64bit
CPU Architecture: Cortex-A53
CPU Frequency: 1.5GHz
GPU: Mali G31 MP2 – Supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1
Number of Core: 4
Memory Bus: LPDDR4
RAM: 1GB RAM LPDDR4
Onboard Storage: 16MB SPI Flash

Network & I/O Ports:
On-Board WiFi: WiFi 5
Bluetooth: BT5.0
Network: 10M/100M/1000M Ethernet
USB: USB 2.0 x 3
HDMI Out: Micro HDMI
Audio Input/Output: 13Pin expansion port supports 2-Ch Output 1-Ch Input
Video output: Micro HDMI up to 4K@60fps / TV-Out:13Pin supports 1-ch TV CVBS output

Expansion Interface:
26Pin GPIO interface / 13Pin GPIO Interface
UART: 3Pin Debug UART
SD Card Interface: Micro SD Card

Power Requirement:
Power Management: AXP313A
Power Interface: Type-C
Power Input: 5v 3A，Type-C connector
PMU: Yes

Dimensions & Weight:
Size: 50mm x 55mm
Weight: 0.2kg

OS:
Android 12 TV
Debian 11 / 12
Ubuntu 22.04 / 20.04

Package Contents:
1 x Orange Pi Zero 3
